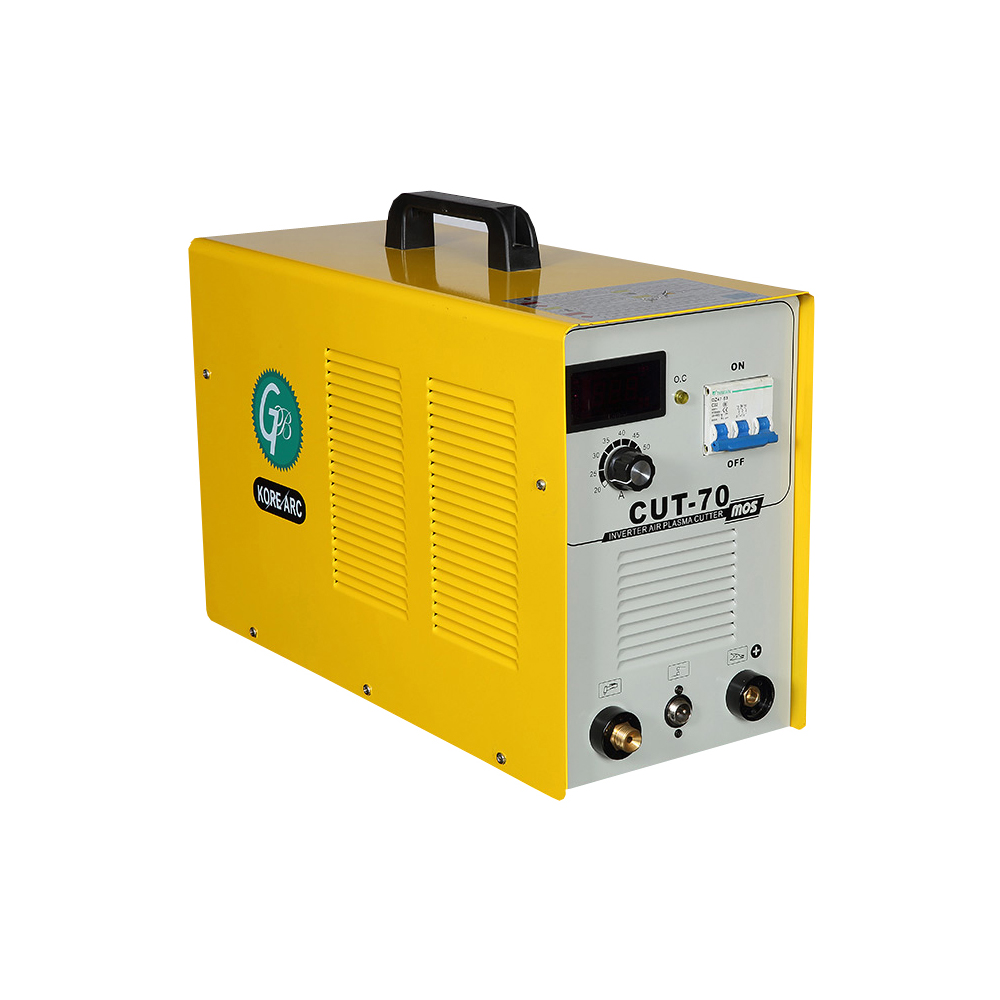

Product Description

Adopt advanced MOSFET inverter technology, using non-crystal core and power units. Reliable, portable, light and high efficiency.
  • Cutting Torch
  • Earth Clamp with Cable
  • Air Filter
  • Hose
  • Hose Clamp


Guidlines based materials

Base Material Plate Thickness Arching Way Current Range (A) Applicable Model
All Types of Carbon Steel, Stainless Steel, Low-alloy Steel

2.0-12.0

contact

15-70

CUT 70

Product Features

  • Optimized Layout Structure Design with High Inverter Frequency & High Duty Cycle; Substantial Energy Consumption Savings.

  • Smaller, Lighter and Easy to Carry on; Especially Adaptable to the Welding Application in the Field Operation.

  • It is featured with high-ignition rate, high arc voltage, energy concentration, strong cutting ability, quick cutting speed, slim cutting line with smooth cut surface and tiny deviation in shape; stable voltage in big cutting current; especially adaptable in cutting the thickness plate, its cutting speed is much quick.

  • Capable of cutting the metal in any direction and shape.

  • Digital Display; Cutting Current can be continuously adjusted with clear and accurate reading
  • Built-in over-heat, over-current, over-voltage and less-voltage protection circuits, safe in operation
  • Adaptable to the welding application on the metal of carbon steels, stainless steels, alloy steels, aluminium, copper and so on
Parameter CUT 70 MOSFET - 3 PHASE
Input VoltageAC380V+-15% 1P
Input Frequency50/60
Related Input Current23.1A
Input Power15.1KVA
Open Circut Voltage293V
Current Range20-100A
Related Output Voltage120V
Duty Cycle60%
Efficiency85%
Power Factor0.93
Cutting thickness<= 12mm
Arc initiatingUntouch
Air pressure (MPa)0.4-0.5MPa
Protection ClassIP21
Weight36.5KG
Dimensions550X280X545 mm
